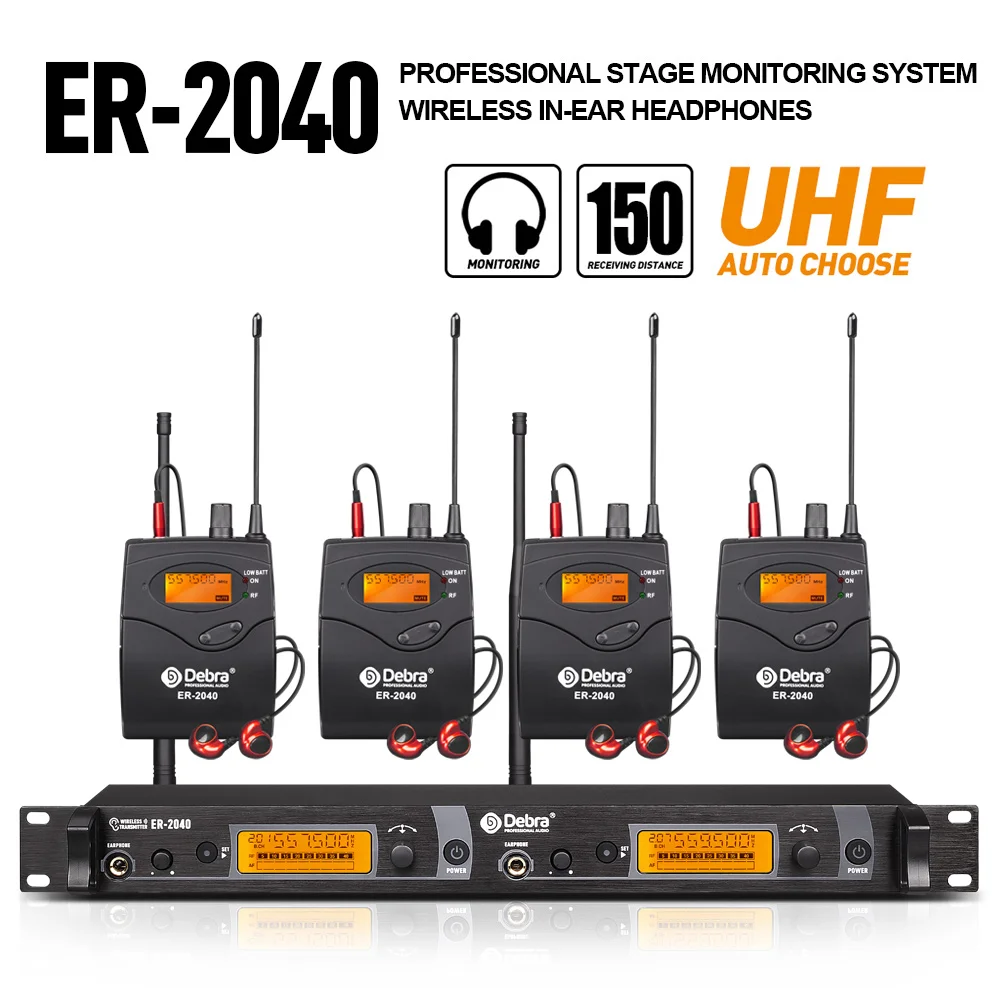

ER-2040 Professional Wireless In-Ear Monitoring System, UHF with Multiple Receivers for Small Concerts and Stage Performances

Product introduction

UHF system, with high quality traditional circuit design, stronger signal, effective distance up to 300M under the open stage without cover. sound quality updated, better sound reproduction of SR2050 type. New operating system, automatic search for non-interference frequency function, using FM frequency synchronisation, more convenient to use.40 groups of frequencies can be adjusted between 572Mhz to 603Mhz.LCD display shows clear working status, beltpack receiver low battery reminder. Independent power switch control for the transmitter, with ports on both sides of the machine for easy setup. Electronic adjustable volume function, metal receiver and metal transmitter. This wireless monitoring system is used for stage performances and sound broadcasting, and can replace traditional complex sound monitoring equipment to achieve amazing monitoring effects. Using the latest high-frequency transmission and audio signal dynamic processing technology, it also improves the signal-to-noise ratio in the dynamic range, giving the system optimum interference immunity and re-presenting the perfect original sound.

Product Features

1、UHF band phase-locked PLL
2, In the 32MHz band, the preset 40 frequencies can be switched at will.
3, Dynamic expansion circuit, greatly improve the signal-to-noise ratio.
4、Elegant liquid crystal display panel
5、With power and RF receiver indicator light
6, using two 5 batteries and efficient power supply circuit, long service life
7、Metal casing, sturdy and durable
8、Transmitter with balanced and unbalanced common socket.
9, Transmitter with output monitoring phone jacks

Transmitter:

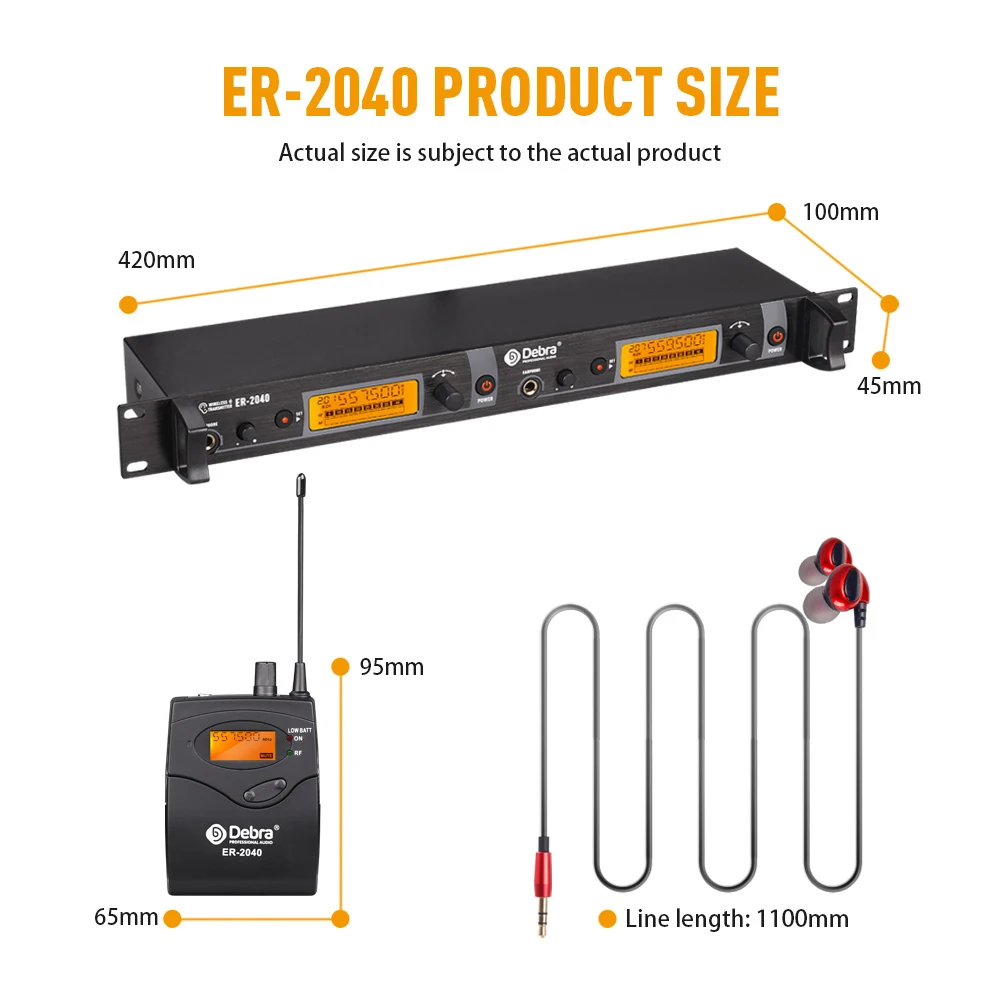

Enclosure specification: Standard 1U
Enclosure Material: Metal Panel
Oscillation mode: PLL synthesis
Frequency stability: +0.005%
Frequency range: 550-572.5 MHz
Frequency interval: 32MHz
Preset channels: 2 channels individually set 100 groups
Operation mode: manual adjustment, automatic adjustment
Maximum deviation: +48KHz
Frequency Response: 50Hz~15KHz +3dB
Transmit output power: 100mW (50)
Harmonic radiation: <4NW
AF Input: XLR, 6.35mm jack
Headphone Load Impedance: >16
Current consumption: DC 12V/250mA
Antenna socket: TNC socket (50)

Receiver:

Oscillation mode: PLL synthesis
Frequency range: 550-572.5 MHz
Preset channels: 2 channels individually set 100 groups
Operation mode: manual adjustment, automatic adjustment
Receiving mode: monotonic
Sensitivity: 25 kHz deviation, 7 dBuV connection, S/N > 78 dB
Maximum deviation: +48 KHz
Comprehensive total harmonic distortion: > 94db (1KHZ-A)
Comprehensive Response:: 50Hz~15KHz+3dB
Output Power: (32)2x35mw@1KHz
Headphone Load Impedance: >16 Output Socket: 3.5mm stereo headphone socket Volume Output Adjustment: Adjusted when in use Power Supply Box: Battery AAX2 Current Consumption: 3V/120mA (Volume Control Medium or below)

Reason to buy:

LCD display shows working status at a glance
Metal beltpack receiver
Beltpack receiver battery low alert
2. Power switch control
There is a mouse on each side of the machine for easy setup.
Strong signal, UHF frequency
Digital tone key locking technology to avoid possible interference.
100 groups of individually preset channels, adjustable
Effective distance: 180M
Audio output: mono
