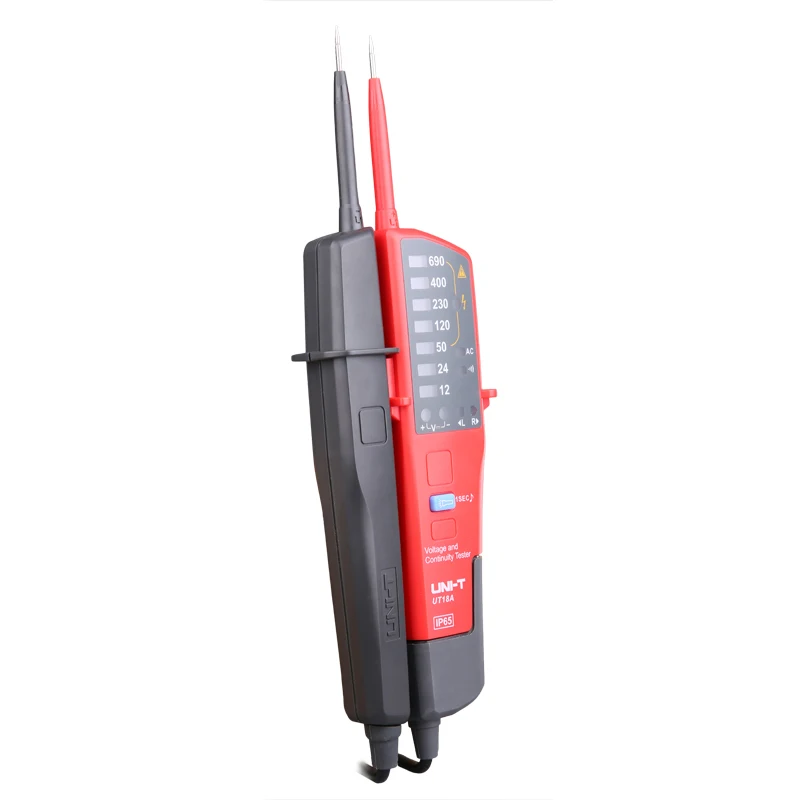

UNI-T Digital Voltmeter UT18B UT18D AC DC Voltage Continunity Tester 690V LCD Display 3 Phase Sequence RCD Electrical Tester

$53.98 – $86.98

Features

UT18 Series voltage and continuity testers are designed for testing AC DC voltage, 3-Phase voltage and phase sequence,Continuity,and more.This series is categorized as CAT IV 600V and meets IP65 standard.

Application fields for UT18 includes smelting, electronics ,manufacturing, and electrical. These voltage testers are perfect tools for electricians ,to quickly measure voltage levels in andy harsh environment.

This series should NOT be used in 110V electrical systems

Note:Battery is not included

Name: UNI-T Digital Voltmeter UT18B UT18D AC DC Voltage Continunity Tester 690V LCD Display 3 Phase Sequence RCD Electrical Tester
SKU: 4001230335474
Availability: InStock

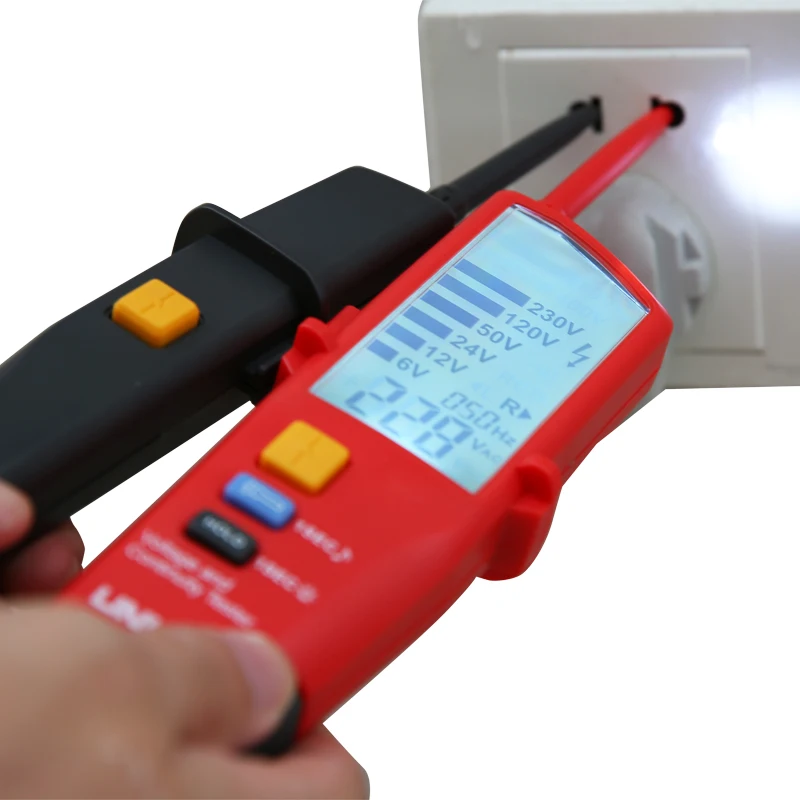

LCD Display and analog bar graph(UT18D)

Auto power off,the conductor to be measured is greater than 12V

Phase rotation test

Continuity test with buzzer and LED indication

RCD:Detecting leaskage protective switch(UT8B/C/D)

Low battery indication and over voltage prompt

LED prompt(Note:UT18D without this function)

Flashlight

Test live voltage without batteries(UT18A/B/C)

Buzzer and silent mode

Auto standby mode(UT18C/D)

Auto range/Inspection

Voltage,frequuency display(UT18C/D)

LCD backlight(UT18D)

Data hold(UT18C/D)

Polarity indication

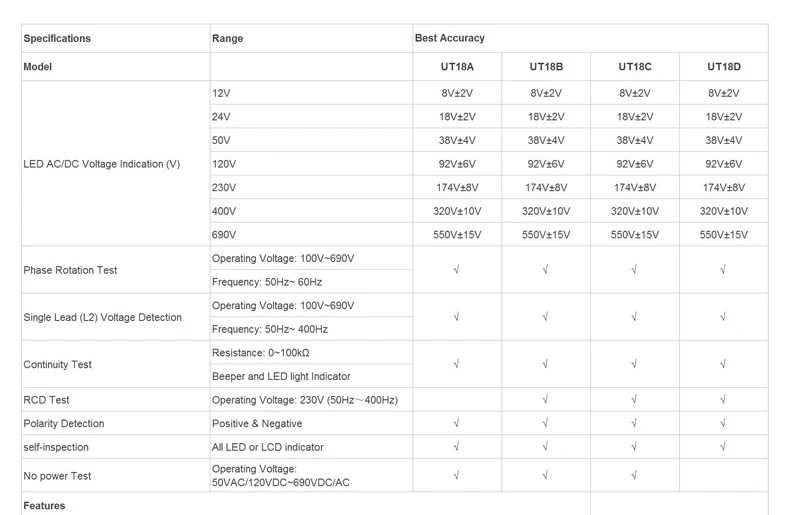

Specifications	Range	Best Accuracy
Model		UT18A	UT18B	UT18C	UT18D
LED AC/DC Voltage Indication (V)	12V	8V±2V	8V±2V	8V±2V	8V±2V
	24V	18V±2V	18V±2V	18V±2V	18V±2V
	50V	38V±4V	38V±4V	38V±4V	38V±4V
	120V	92V±6V	92V±6V	92V±6V	92V±6V
	230V	174V±8V	174V±8V	174V±8V	174V±8V
	400V	320V±10V	320V±10V	320V±10V	320V±10V
	690V	550V±15V	550V±15V	550V±15V	550V±15V
Phase Rotation Test	Operating Voltage: 100V~690V	√	√	√	√
Phase Rotation Test	Frequency: 50Hz~ 60Hz	√	√	√	√
Single Lead (L2) Voltage Detection	Operating Voltage: 100V~690V	√	√	√	√
Single Lead (L2) Voltage Detection	Frequency: 50Hz~ 400Hz	√	√	√	√
Continuity Test	Resistance: 0~100kΩ	√	√	√	√
Continuity Test	Beeper and LED light Indicator	√	√	√	√
RCD Test	Operating Voltage: 230V (50Hz～400Hz)		√	√	√
Polarity Detection	Positive & Negative	√	√	√	√
self-inspection	All LED or LCD indicator	√	√	√	√
No power Test	Operating Voltage: 50VAC/120VDC~690VDC/AC	√	√	√
Features
IP65		√	√	√	√
Auto Range	All Range	√	√	√	√
Work Light	All Range	√	√	√	√
Low Battery Indication	Voltage Range: 2.2V～2.4V	√	√	√	√
Exceed Voltage	Voltage Range: 713V～788V	√	√	√	√
Auto standby	Standby Current <10uA	√	√	√	√
Silent mode	All Range	√	√	√	√
LCD Backlight	All Range				√
LCD Display (Voltage+Frequency)	6V~690V (40Hz~400Hz)			±(1.5%+5)	±(1.5%+5)
General Characteristics
Power	1.5V Batteries (R03) × 2
LCD Size	UT18C-31×20mm; UT18D-73.5×35.5mm
Product Color	Red and Grey
Product Net Weight	UT18A/B=260g、UT18C/D=280g
Product Size	272mm×85mm×31mm

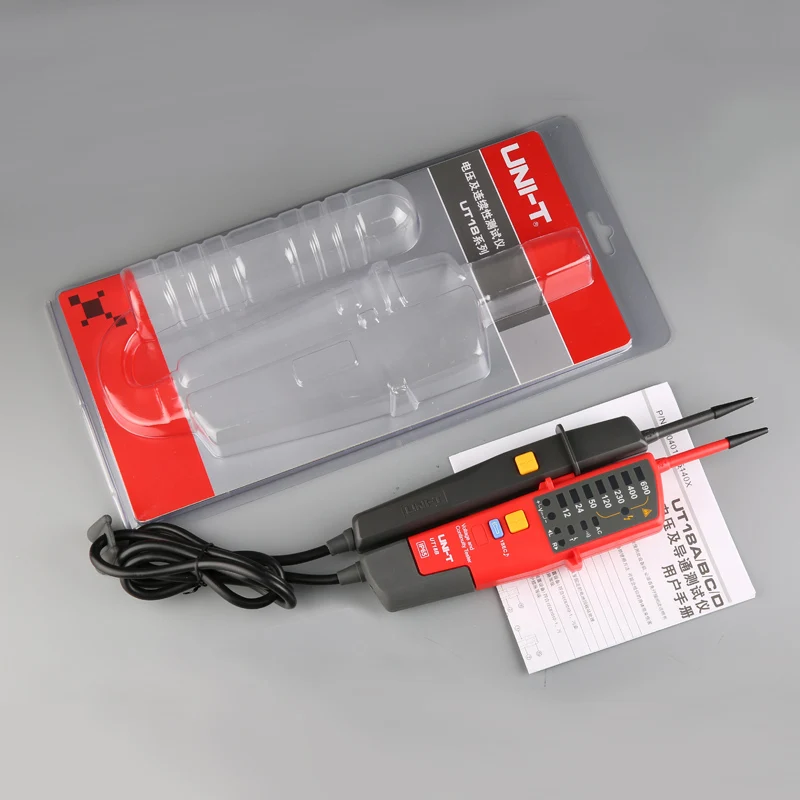

Standard Individual Packing	Blister, English Manual
