Update RC Servo 20KG / 25KG / 30KG Full Metal Gear Digital Servo 180 Degree Baja Waterproof of Version 25T Arm for cars RC Toy

20KG Servo:



– High-precision metal gears with hard anodizing

– CNC aluminium middle Shell,



Control system :PWM control (1500 u-sec is the central point)

Working voltage:4.8V ~ 6V

Working temperature: -20C°~ +60C°

Torque :4.8V /17.2kg.cm

6.0V /20.3kg.cm

 Idle speed :4.8V/0.15sec / 60 deg

          6.0V/0.13sec / 60 deg

Steering angle: 180



Idle current:4.8V/470mA 6.0V /650mA

Load current :4.8V/750mA 6.0V /950mA

Dead band :2usec

Lifetime:>15000 times without load

Moving angle:60°±10°

Drive type: MOS drive

Motor type:Cored motor

Potentiometer type:Direct drive

Signal booster type:Digital

Size:40.5X20.2X40.3mm

Weight : 62g (without accessories)

Ball Bearing:2BB

Gear material:Metal gear

Case material: PA66+fiber40%

Wire length:260mm

Wire gauge No and plug type:26AWG,JR plug

Brown wire:Negative

Red wire:Positive

Orange wire:Singal

Application:RC car, RC airplane, Helicopter

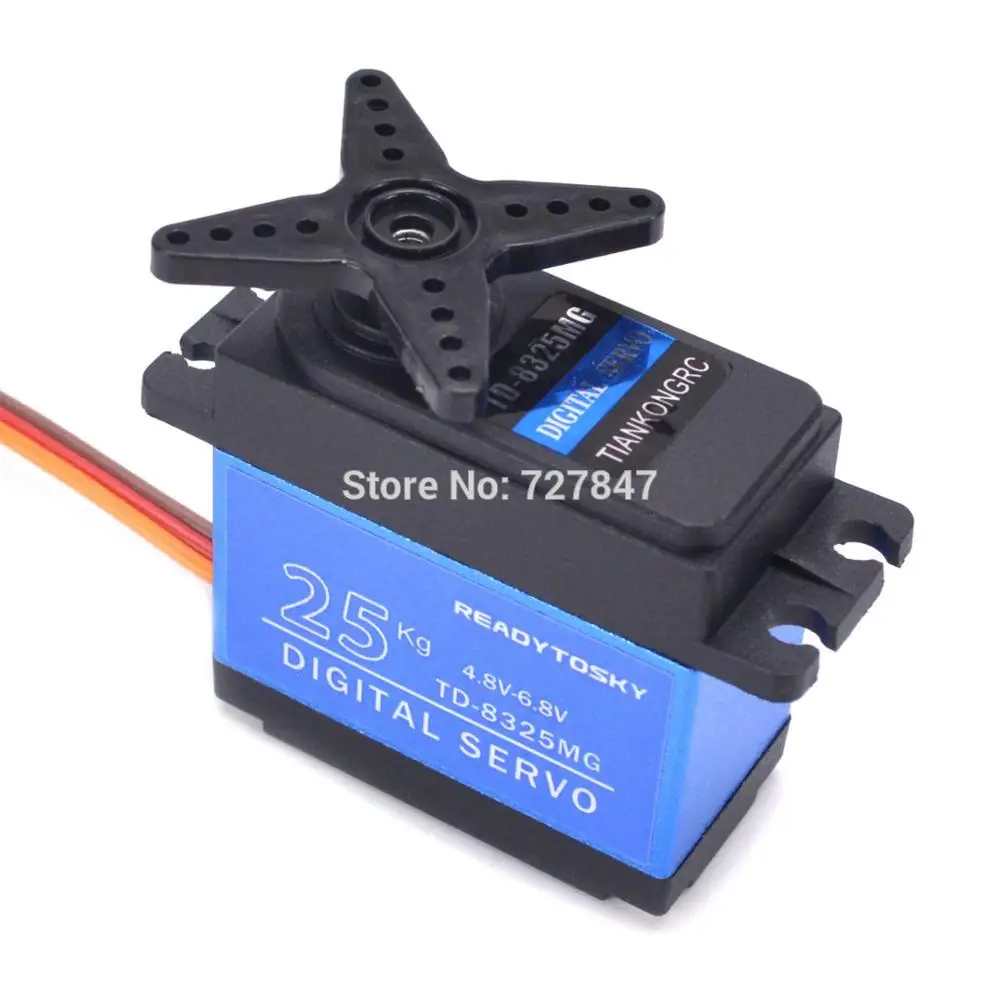

25KG Servo 180 Degree：





Apply Environmental Conditon:

1.Storage Temperature Range: -30°C～80°C

2.Operating Temperature Range: -25°C～70°C



Standard Test Environment:

1.Temperature Range: -25°C～70°C

2.Humidity Range: 65%±10%





Mechanical Specification:



1. Size: 40.0*20.5*40.5mm

2. Weight: 56g±2g

3. Gear type: 5 Metal

4. Limit angle: 360°

5.Bearing: 2BB

6. Horn gear spline: 25T  Diameter:5.9mm

7. Horn type: Plastic, POM

8.Case : Engineering plastics(PBT)+Aluminum alloy

9. Connector wire: 320mm±5mm

10.Motor: Carbon brush motor





Electrical Specification:



1.Operat voltage: 4.8V – 7.2V

2.No load speed: 0.18sec/60° – 0.14sec/60°

3.Running current: 140mA – 200mA

4.Peak stall torque: 23.5kg.cm-26.8kg.cm

5.Stall current: 2600mA±10% – 3400mA±10%

6.Working voltage range: 4.8 – 7.2V





Control Specification:



1.Command signal: Pulse width modification

2.Amplifier type: Digital controller

3.Pulse width range: 500～2500usec

4.Neutral position: 1500usec

5.Running degree: 180°±3°(when 500～2500usec)

6.Dead band width: 5 usec

7.Rotating direction Counterclockwise: (when 1000～2000usec)

















30KG 180 Degree Servo:





Apply Environmental Conditon:

1. Storage Temperature Range: -30°C～80°C

2. Operating Temperature Range: -25°C～70°C



Standard Test Environment:

1.Temperature Range: 25°C～70°C

2. Humidity Range: 65%±10%



Mechanical Specification:



1. Size: 40.0*20.5*40.5mm

2. Weight: 56g±2g

3. Gear type: 5 Metal

4. Limit angle:360°

5. Bearing:2BB

6. Horn gear spline: 25T   Diameter: 5.9mm

7. Horn type: Plastic, POM

8. Case: Engineering plastics(PBT)+Aluminum alloy

9. Connector wire 320mm±5mm

10. Motor Carbon brush motor





Electrical Specification:



1. Operat voltage: 4.8V – 7.2V

2. No load speed: 0.24sec/60° – 0.17sec/60°

3. Runnig current: 140mA – 200mA

4. Peak stall torque: 29.5kg.cm – 32kg.cm

5. Stall current: 2600mA±10% – 3400mA±10%

6. Working voltage range: 4.8 – 7.2V



Control Specification:



1. Command signal: Pulse width modification

2. Amplifier type: Digital controller

3. Pulse width range: 500～2500usec

4. Neutral position: 1500usec

5. Running degree: 180°±3°(when 500～2500usec)

6. Dead band width: 5 usec

7. Rotating direction: Counterclockwise (when 1000～2000usec)









Note : We have a remote controlled 20kg / 25kg servo that can reach 180 Degree.





Steering angle: 180 Degree control by remote control
