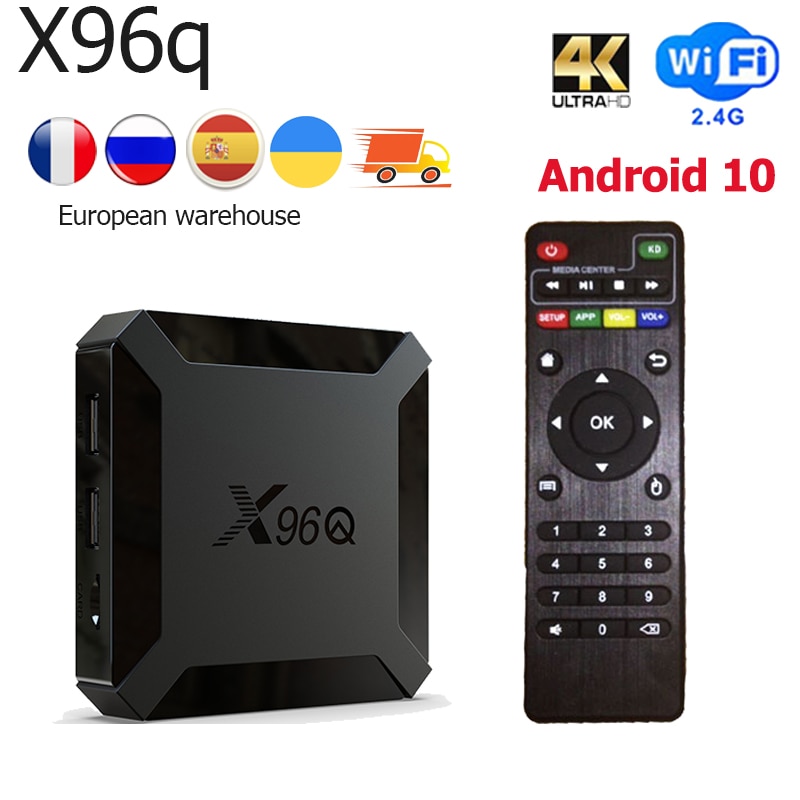

Smart TVBox X96Q Android TV Box Android 10 Allwinner H313 Quad Core

TV BOX Only

X96Q (H313)

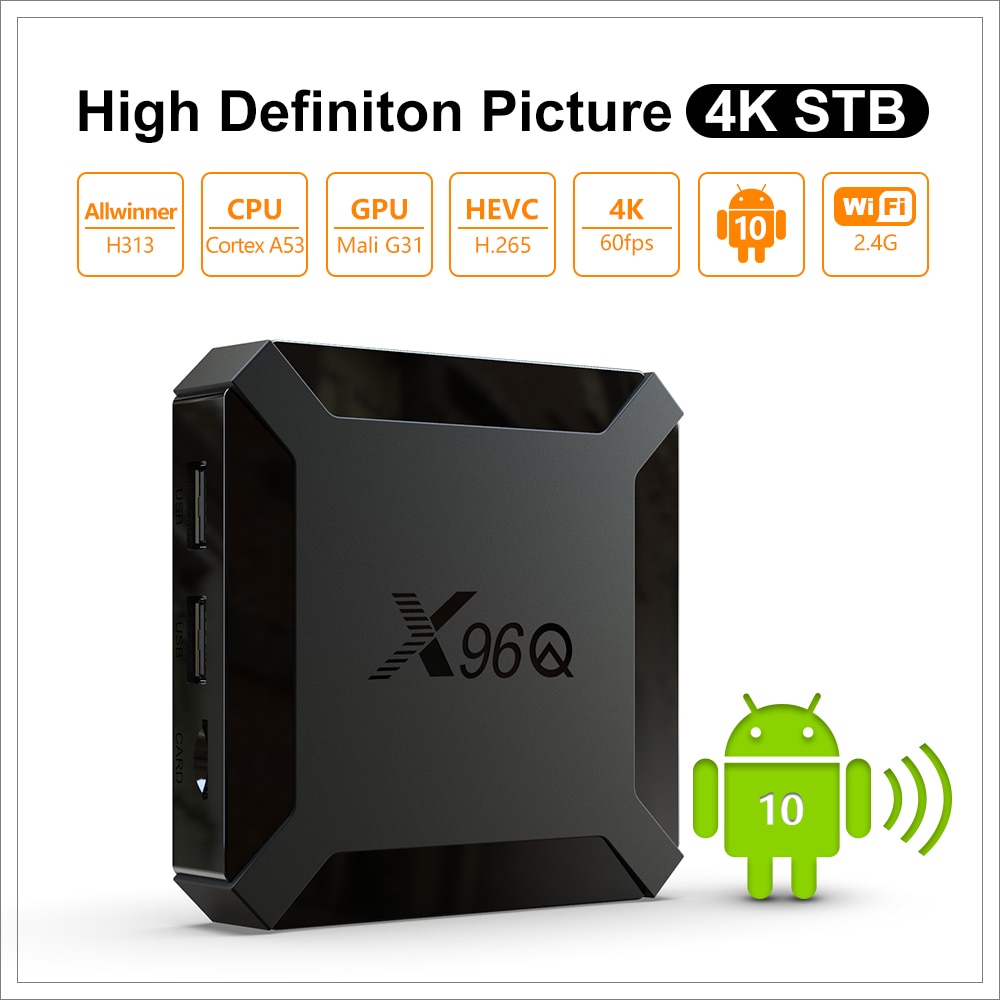

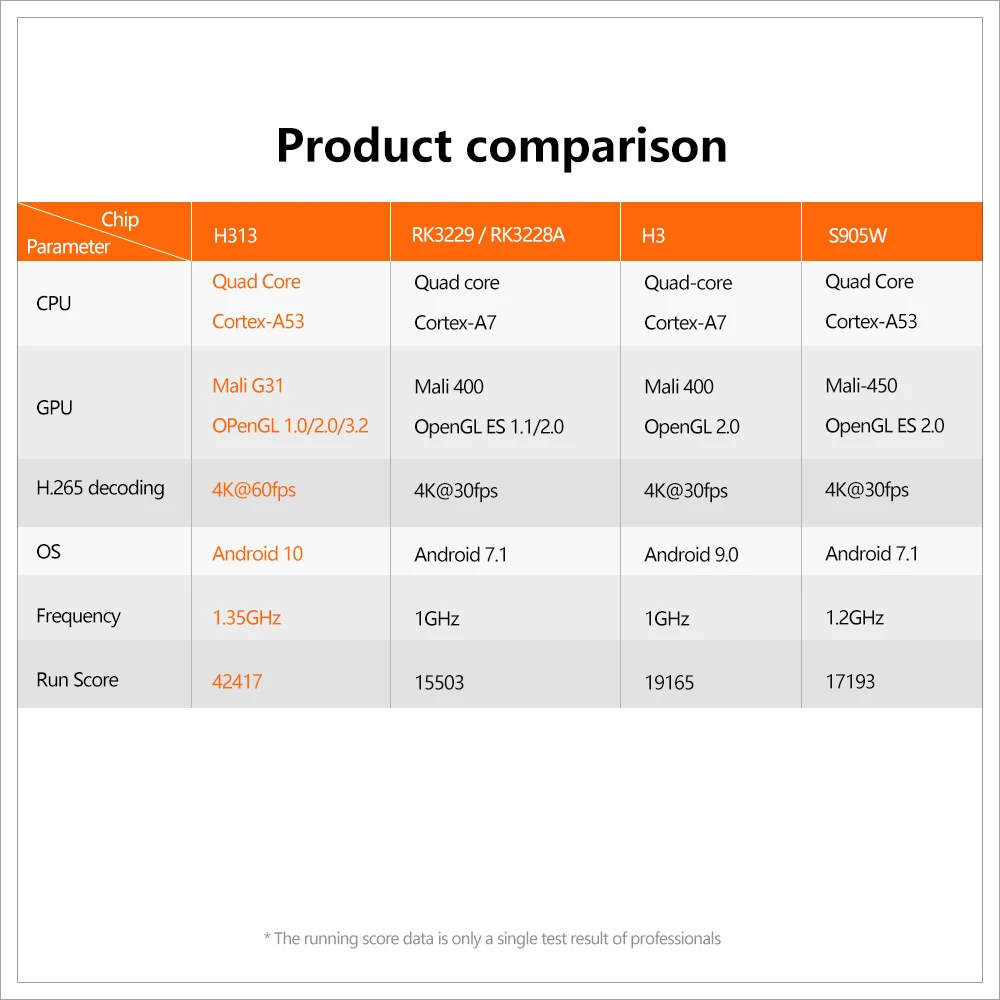

CPU:Allwinner H313 Quad Core ARM Cortex A53

GPU:G31 OPenGL3.2

Memory:DDR3：1GB (Option: 2GB)

Flash:eMMC：8GB (Option:16GB )

WiFi:IEEE 802.11 b/g/n

Moudle:Plastic : Black Color

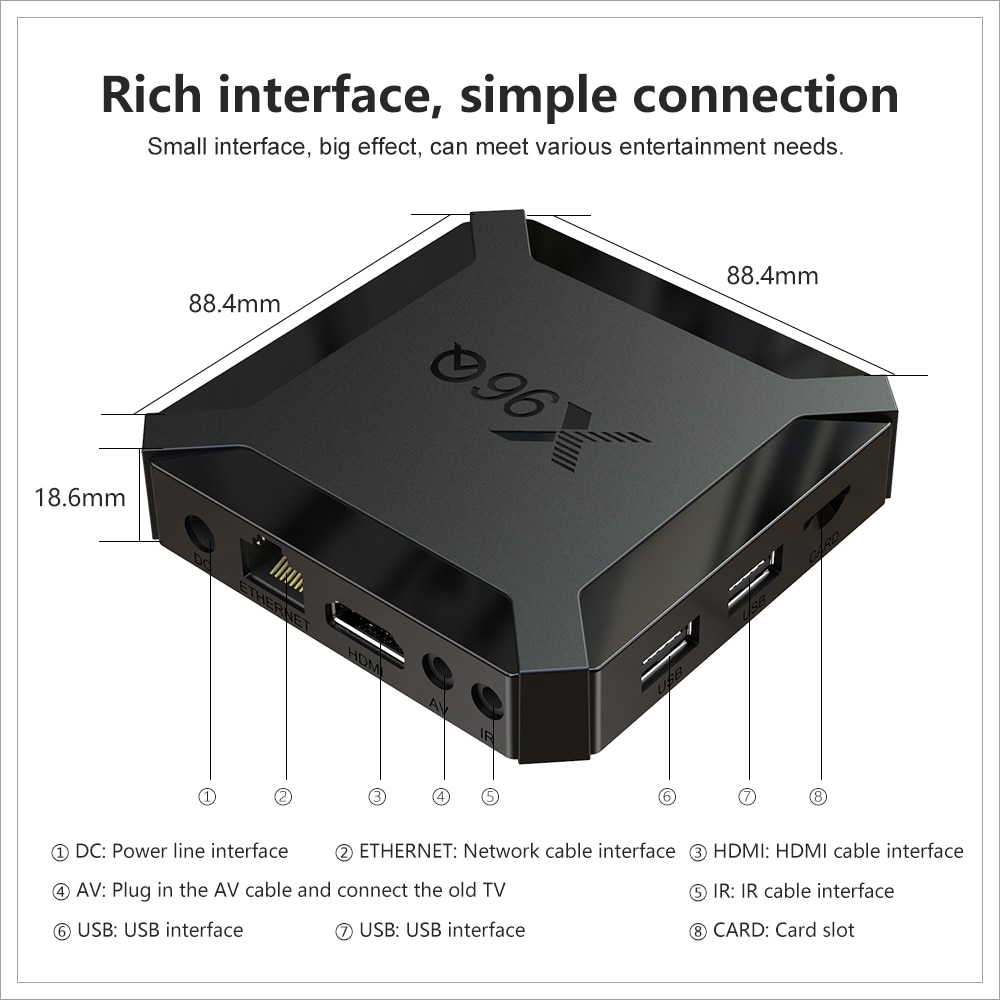

I/O:

1*AV OUT:480i/576i standard definition output

2*USB:1* USB Host Port ,1*USB Device

1*IR Reciver:Remote Reciver Connect

1*RJ45:Ethernet Interface

1*TF CARD:Support 4GB/8GB/16GB/32GB/64GB

Power:DC 5V/2A；

LED indicator: Working ：Blue; Standby：Red

Software

OS:Android 10.0

Video

Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders

Support multi-video decoder up to 4K@60fps

Supports multiple “secured” video decoding sessions and simultaneous decoding and

encoding

Video/Picture Decoding

– VP9 Profile

-2 up to 4K@30fps

– H.265 Main10@L5.1 up to 4K@60fps

– AVS2 JiZhun 10bit Profile up to 4K@60fps

– H.264 BP/MP/HP@L4.2 up to 4K@30fps

– H.263 BP up to 1080P@60fps

– MPEG-4 SP/ASP@L5 up to 1080P@60fps

– MPEG-2 MP/HL up to 1080P@60fps

– MPEG-1 MP/HL up to 1080P@60fps

– Xvid up to 1080P@60fps

– Sorenson Spark up to 1080P@60fps

– VP8 up to 1080P@60fps

– AVS/AVS+ JiZhun Profile up to 1080P@60fps

– WMV9/VC1 SP/MP/AP up to 1080P@60fps

– JPEG HFIF file format up to 45M PPS

– Multiple language and multiple format sub-title video support

– MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)

– Supports JPEG thumbnail, scaling, rotation and transition effects

– Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg

file formats

Audio

Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing

Built-in

serial digital audio SPDIF/IEC958 input/output and PCM input/output

• Two DAC channels

• Supports 1 audio output interface (differential LINEOUTP/N or single-end

LINEOUTL/LINEOUTR)

• One Audio HUB, supporting internal mixing function

• Embedded 3 I2S/PCM (I2S0 for extended audio codec, I2S2 for BT, I2S3 for digital power

amplifier)

• Supports Left-justified, Right-justified, Standard I2S mode, PCM mode, and TDM mode

• I2S mode supports 8 channels, and 32-bit/192kbit sample rate

• I2S and TDM modes support maximum 16 channels, and 32-bit/96kbit sample rate

• One OWA OUT interface, supporting 16-/20-/24-bit inputs and outputs

• Integrated digital microphone(DMIC), supporting maximum 8 digital PDM microphones

Image: HD JPEG、BMP、GIF、PNG、TIF

Language: English French German Spanish Italian etc multilateral languages

Appliactions

Online:Browse all video websites.

Apps:Apps download freely form android market、amazon app store etc.

Medium:Local Media playback,Support HDD, U Disck ,TF Card .

Talk online:Support SKYPE video call ,MSN , facebook ,twitter ,QQ etc

Others:Support Email,office suit etc.

Support DLNA function

Support 2.4G wireless

mouse/keyboard

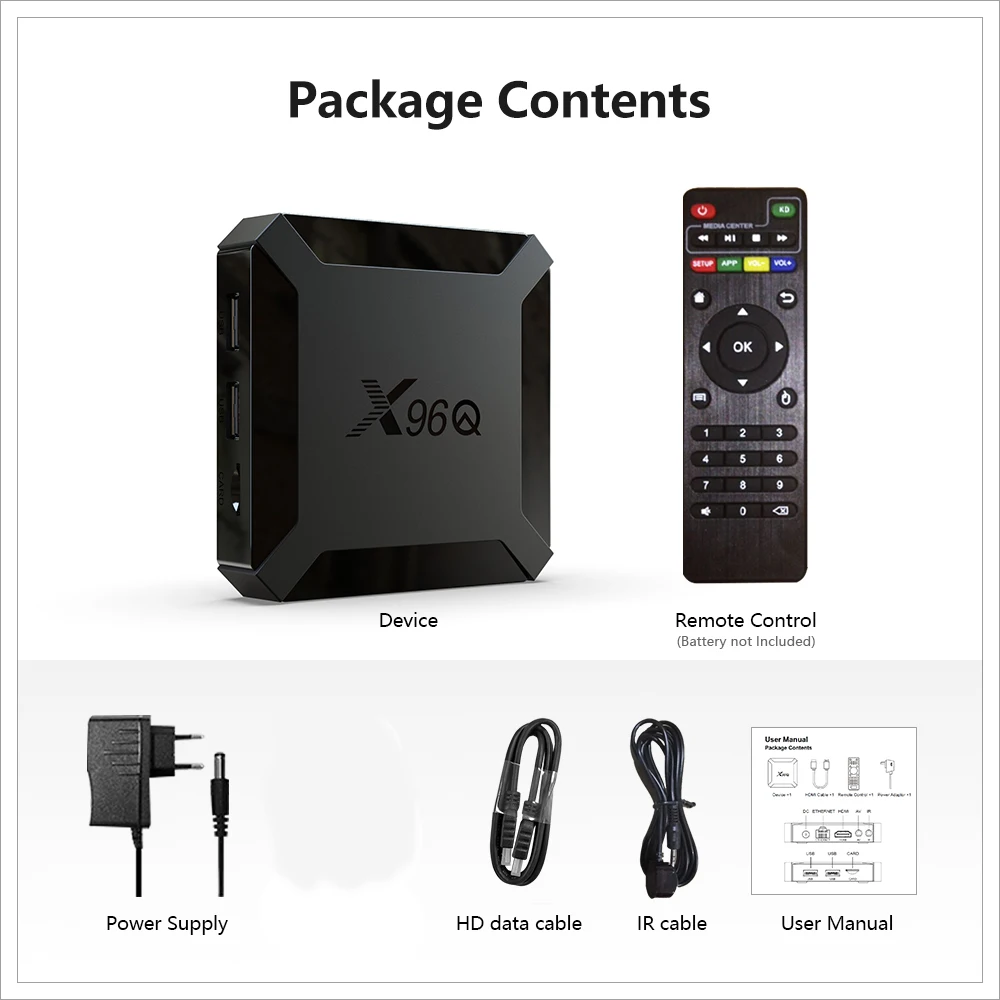

Package include:

HDMI-compatible cable *1

IR Remote *1

User Manual *1

Package box *1

Power adapter *1
